With the Socket Mobile Scanner you will be able to scan products, receipts, gift cards and much more. The barcode reader communicates via bluetooth with your iPad, so to connect it you simply add it as a bluetooth device in the settings on your iPad.
Contents
Install Socket Mobile
Configure Socket 1D Scanner
Scan the barcodes below to configure your 1D scanner.
- Scan this barode to configure for iOS mode:
- Scan this barcode to turn of Power Off timer:
Configure Socket 2D Scanner
Scan the barcodes below to configure your 2D scanner.
- Scan this barode to configure for iOS mode:
- Scan this QR code to turn of Power Off timer:
- Scan this QR code to turn of Hibernate:
Connect the barcode reader to the cash register
- Make sure that the barcode reader is turned on.
- Open Settings on your iPad and choose Bluetooth. The barcode reader should appear as a unit in the list with the name Socket. If you are using a 1D it will be named Socket CHS, and 2D will be named Socket 7xi.
- Tap on the unit named Socket. When the barcode reader is connected it will appear in the list of devices.
- If you can't find the barcode reader in the list or if it has previously been connected to another iPad you can release the barcode reader configuration. To do this, hold the small and large button pressed down at the same time until you hear three beeps. Then start the barcode reader with the small button. Turn Bluetooth on and off by tapping the green button and the device should appear in the list. Tap it to add it.
- Try scanning a product or receipt in Sitoo POS.
How the barcode reader works
To turn the barcode reader on or off, hold down the small button until you hear to beeps. The large button is used to scan barcodes.
There are two different versions of Socket Bluetooth: 1D and 2D. The 1D barcode reader can scan all the regular 1D/linear barcodes at a distance of up to 51 cm. The 2D barcode reader is able to scan all codes, for example QR codes.

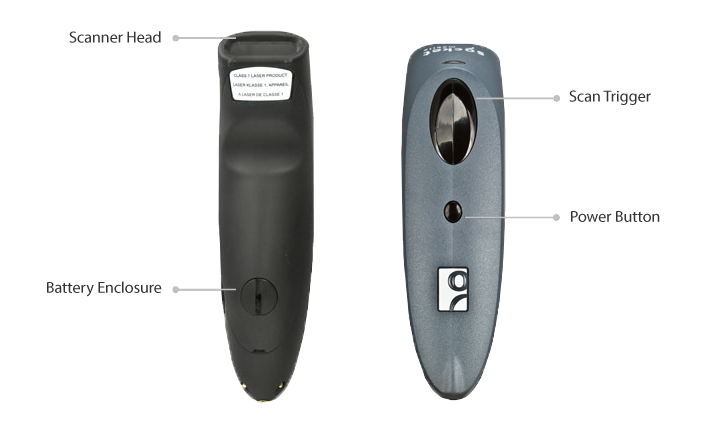

Scanner button = Press the big button to scan products/barcodes
On/off button = Turn the barcode reader on and off - hold the button pressed until you hear a beep.
Explanation of light and sound signals.
Light signals
|
Status |
LED activity |
Meaning |
|
Bluetooth |
1 blue blinking ligh/second |
Bluetooth is on but not connected |
|
Scan |
Steady green (with button pressed down) |
Scan OK |
|
Battery status |
|
|
|
Battery status |
Steady red |
Device is charging |
|
Battery status |
No light (charging cable connected) |
Device fully charged |
|
Battery status |
No light (no charging cable connected) |
Device is turned off |
Sound signals
|
Beep pattern |
Meaning |
|
Low beep |
Device is turned on |
|
Loud beep |
Device is turned off |
|
1 beep |
Barcode reader is connected and ready to scan |
|
1 beep with green light |
Barcode is scanned and accepted |
|
2 beeps (identical tone) |
iPad is no longer connected to the barcode reader |
|
1 long beep |
The barcode reader can't reconnect to a previously connected device, after 5 minutes the barcode reader will power off |
|
3 beeps with an escalating pattern |
The barcode reader configuration is accepted and implemented |
|
3 beeps with an escalating pattern follow by a long beep |
The barcode reader configuration is not accepted. Try again. |
Changing batteries
If you are using a 1D barcode reader you can replace the batteries in the device. Only use rechargeable AAA-batteries. Exchange the batteries by opening the hatch on the lower part of the barcode reader.
When the barcode reader is charging this will be indicated by a steady red light. When the barcode reader blinks rapidly red there's 20% or less remaining battery power. To avoid completely draining the battery, the barcode reader will turn off after a period of inactivity. If the barcode reader is connected to the iPad it will turn off after 2 hours of inactivity. If the barcode reader is not connected to a device it will power off after 5 minutes. används.
Troubleshooting
- Make sure the scanner is not uncharged. If it is uncharged, let it charge for a while.
- Unplug the charges.
- Turn off the scanner by pressing the small button until you hear a sound.
- Start the scanner by pressing the small button until you hear a sound.
- Release the scanner by pressing the big button and the small button simultaneously until you hear another sound.
- Restart the scanner by pressing the small button until you hear a sound.
- Open Settings on your iPad > Bluetooth.
- If the unit "Socket [...]" is already connected, press the icon 'i' and select "Forget this device."
- Turn off Bluetooth.
- Turn on Bluetooth. The unit "Socket [...]" should appear in the list.
- Select the unit "Socket [...]" to connect.
- Restart the Sitoo app; double-click the home button, located on the iPad's short side, and swipe the app upwards.
- Press the home button once. Now you're back to the iPad's homepage.
- Locate the Sitoo POS app on your iPad.
- Press Sitoo POS and open the checkout.
- After a while, the green scanner icon should appear to the left of your initials in the upper right corner.
- Now test the scanner by scanning a product barcode.
Reda the entire troubleshooting guide here.
